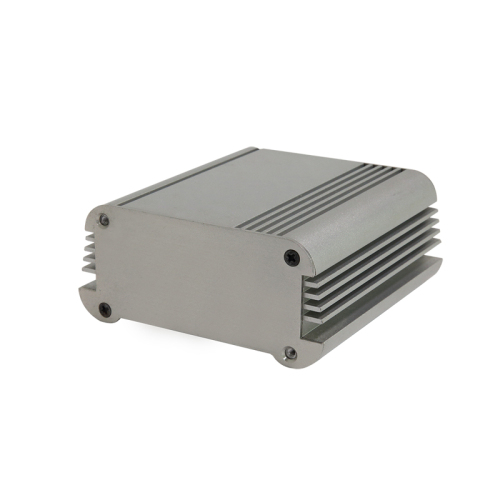

PA125 Extruded Aluminum Enclosure 100×45.5 mm

No.PA125

**Specially Designed for Wall Mounting **

Pre-reserved installation positions facilitate quick fixation on wall surfaces to save cabinet and desktop space.

**Extruded Aluminum Integrated Structure**

Shaped by aluminum extrusion process for solid framework and consistent dimensional precision.

**Efficient Heat Dissipation Performance**

Good thermal conductivity rapidly releases heat of built-in electronic elements to avoid overheating.

**Strong Anti-Corrosion Property**

Anodizable surface effectively resists moisture and oxidation for long-time indoor installation.

**Excellent Electromagnetic Shielding**

Aluminum shell isolates outside interference to keep internal circuit signals stable.

**Flexible Custom Processing Support**

Holes, grooves and wiring openings can be customized according to customers’ equipment demands.

**Application Scenarios**

Widely used for wall-mounted control modules, communication equipment, smart monitoring terminals and small industrial controller units.

GET A QUOTE

Description

100*45.5China huaqiang wall mounting extruded aluminum electronic enclosures housing
NO.PA125
Dimensions from: W x H x L
External dimensions: 100 x 45.5 x L mm ( W*H-L )
Stock Length:75 mm / 110 mm
Stock Color: Silver / Black
Type: Tube Extrusion Enclosure
End Panel: Flat style / L Style

NO.	Part Name	Pcs	Material	Finish / Color
1	Extrusion Enclosure	1	Aluminum Alloy 6063	Sandblast / Anodizing Silver / Black Color
2	End Panel	2	Aluminum Alloy 5052	Sandblast / Anodizing Silver / Black Color
3	M3x8 Screw	8	Iron	Black / Silver

Temper	T4-T6
Advantages	1.Good quality in material 2.Excellent surface finish 3.Competitive price
Certification	CE / SGS / ROSH are available
Length	Can be customized
Protection Level	No IP Rating
Packing	Box
Advantages	Light, Heat sink
Tolerance	0.05mm~0.1mm
DRW format	PDF/DWG/IGS/STP/ etc
Function	Custom industrial aluminium electronic project box customized aluminum case as junction box electrical housing for solar energy converter Customized aluminum hdd enclosure with high
MOQ	1 Set
Delivery Time	Stock Enclosure 3 days, Customzied Sample 7 Days, Mass Order 15 days
Delivery Method	Express, Air Plan, Sea
Machine Process	Cutting,Punching, Drilling, Bending, Weld, Milling, CNC
Finish Process	Polish, Brush, Sandblast
Color	Anodizing, Spraying
