AF003 Aluminum Amplifier Chassis 78×24 mm, Anodized

No.AF003


Premium Anodized Aluminum Sheet Material	Constructed from anodized aluminum sheet, the surface features outstanding anti-oxidation and scratch-resistant performance.
Stable Sheet Metal Assembly Structure	Fabricated by aluminum sheet bending and splicing, with solid overall structure and neat box edges.
Good Natural Heat Dissipation	Aluminum sheet’s excellent thermal conductivity efficiently dissipates heat from built-in amplifier circuits during operation.
Effective Electromagnetic Shielding	Solid aluminum shell isolates external interference to guarantee pure and stable audio output of amplifiers.
Moisture and Dust Resistance	Anodized protective layer prevents damp erosion and dust infiltration to protect internal audio components.
Customizable Size and Opening Machining	Supports customized cutting, hole punching and notch processing to match various amplifier internal layouts.
Application Scenarios	Suitable for HIFI audio amplifiers, car power amplifiers, professional stage amplifier equipment and home stereo module housings.

GET A QUOTE

Description

AF003 — Extruded aluminum amplifier enclosure

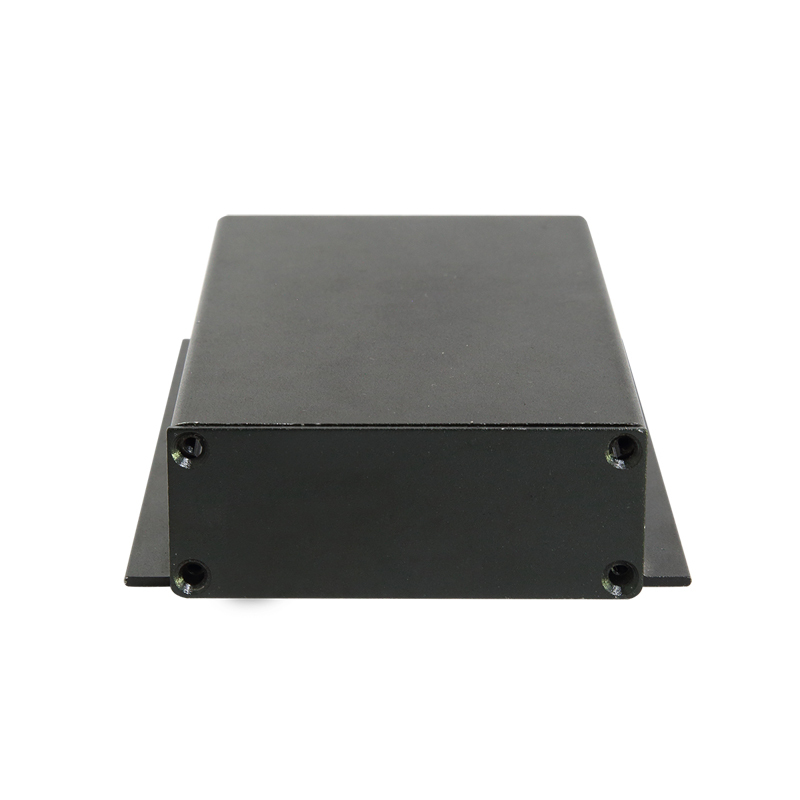

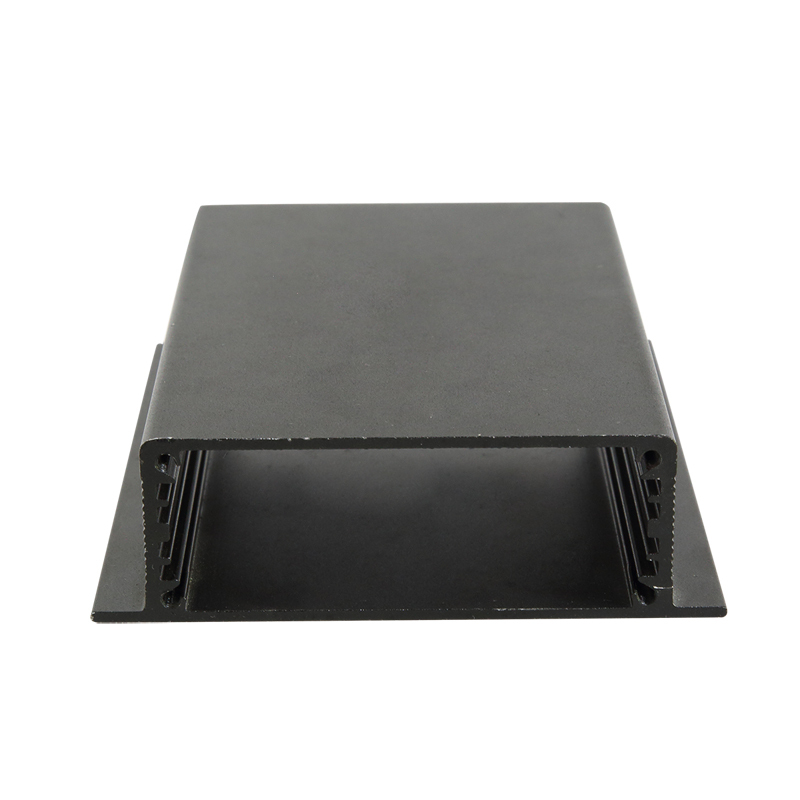

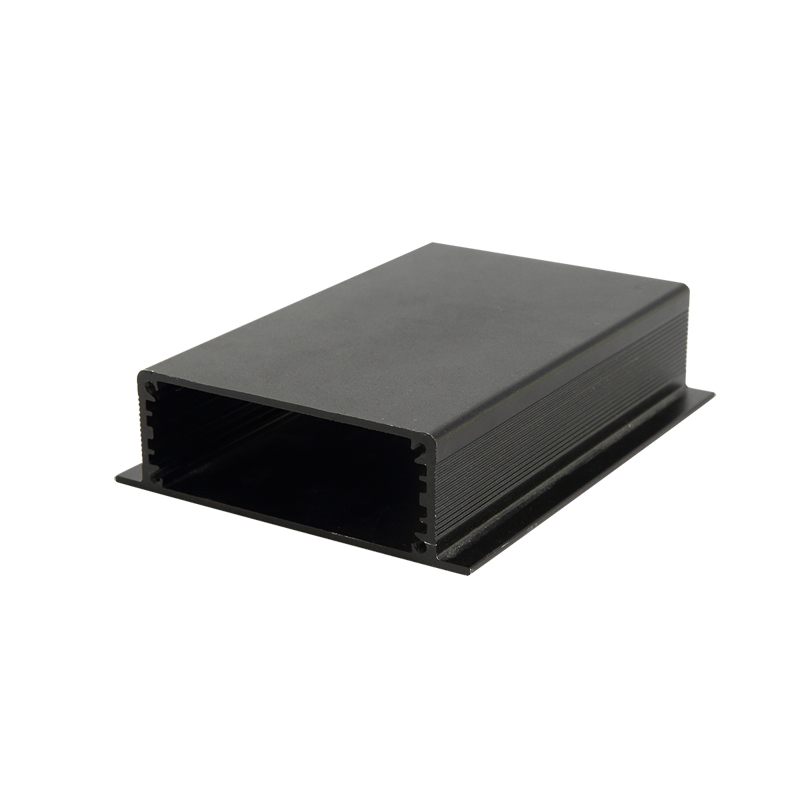

The AF003 is a compact extruded aluminum amplifier enclosure measuring 78 × 24 × L mm (3.07" × 0.94" × L"). It is built from extruded aluminum construction with a slide-in body and machined end panels, and it suits engineers who need a handheld housing that can be machined, finished and branded to match a specific product design. Length is cut to order, so the same profile can serve several product sizes without a new mould. Because the profile comes from PUMAY's library of more than 1,000 existing moulds, no tooling fee is charged and a machined sample can be ready in about seven days.

Specifications

Model No.	AF003

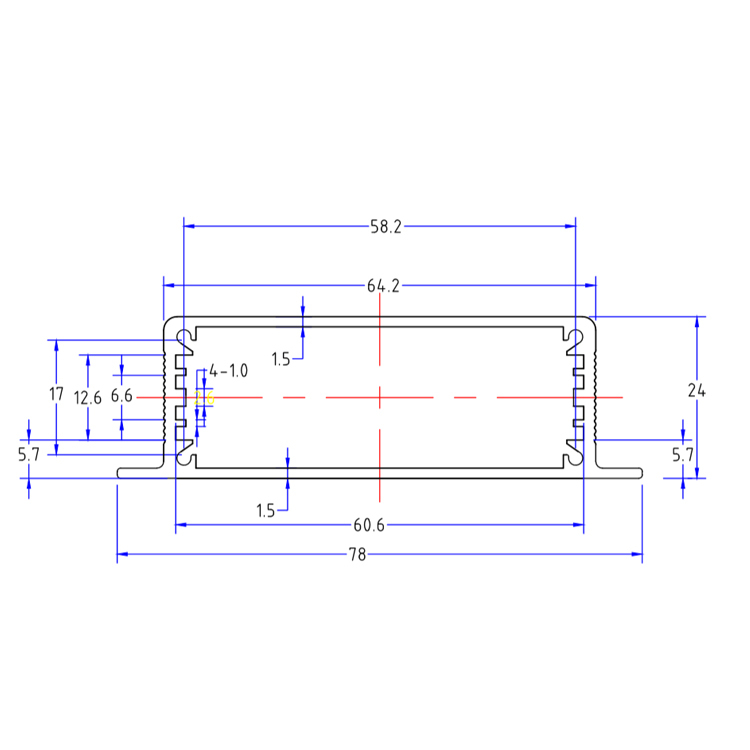

External dimensions	78 × 24 × L mm (3.07" × 0.94" × L") (W × H × L)
Material	Aluminum alloy 6063-T5 as standard; 5052 and 6061 available on request
Structure	Extruded Tube
Wall thickness	1.2 – 2.0 mm depending on profile
Surface finish	Sandblasting, anodizing (clear, black, custom colours), powder coating, brushing, silk screen printing
Protection	IP54 as standard; IP65 / IP67 / IP68 with gasket sealing and sealed end panels
Colour options	Natural, silver, black and custom RAL / Pantone colours
MOQ	1 piece for samples · 50 pieces for mass production
Sample lead time	7 – 10 days after drawing confirmation
Production lead time	15 – 18 days after sample approval
Price terms	EXW / FOB Foshan, CIF on request
Payment	T/T, PayPal, credit card
Place of origin	Foshan, Guangdong, China

Customisation Options

Every AF003 is made to order. The options below can be combined freely; send a drawing or a dimensioned sketch and we will confirm feasibility and price.

Hardware: screws, studs, standoffs, blind rivet nuts, riveting bolts, rubber feet and mounting brackets.
PCB mounting: internal slide-in slots for board edges, plus standoffs or bosses at your board outline.
Finishing: sandblasting, brushing, anodizing, powder coating and two-tone finishing across body and panels.
Length: cut to your finished dimension, so one profile can cover several product sizes without a new mould.
CNC cut-outs: connector apertures, switch and button openings, LED windows, display cut-outs and cable glands machined in the body or end panels to your drawing.
End panels: flat, stepped or flanged aluminium end plates, with or without a sealing groove.
Branding: laser engraving, silkscreen printing, anodized colour fill or adhesive label recess.

Typical Applications

Class-D and HiFi audio amplifiers
Active studio monitors and PA systems
Car audio amplifiers
Headphone amps and DAC units
Home theatre and AV receivers
DIY audio projects

Why Buyers Choose PUMAY

No tooling fee. More than 1,000 aluminium extrusion moulds are already in stock, so you pay for material and machining, not for a new die.
One factory, start to finish. Extrusion, CNC machining, sandblasting, anodizing, silk screen printing and laser engraving all happen in PUMAY's 4,500 m² Foshan plant.
Quotation in 24 hours. Send a drawing or a sample and our engineers reply with a real quote within one working day — not an automated message.
Low minimums. Samples from 1 piece and production from 50 pieces, which suits pilot runs and hardware start-ups.
Tolerance. ±0.1 mm on machined features, verified against the CE, SGS and 6063 material certificates supplied with every batch.

Frequently Asked Questions

Can the AF003 be cut to a custom length?

Yes. Length is the easiest dimension to change on an extrusion - tell us the finished length and we cut and machine the section accordingly.

Is there a tooling or mould charge?

No. AF003 is produced from a mould that already exists in PUMAY's inventory, so no tooling fee is charged. You only pay for material, machining, finishing and freight.

Can the AF003 be made water-resistant?

Yes. With a gasket groove, sealed end panels, sealed cable glands and an appropriate IP-rated connector selection, the enclosure can be built to IP65, IP67 or IP68. Tell us the target IP level and the intended environment and we will confirm the sealing method.

What is the minimum order quantity?

One piece for a sample so you can check fit and finish, and 50 pieces for mass production. Larger quantities are quoted with volume pricing.

Request a Quote for AF003

Send your drawing, 3D model or a sample with your target quantity and required finish, and PUMAY's engineers will reply with a detailed quotation — including lead time and shipping options to North America and Europe — within 24 hours.
