BF001 Aluminum Enclosure 25 mm Height

BF001 — Extruded aluminum enclosure

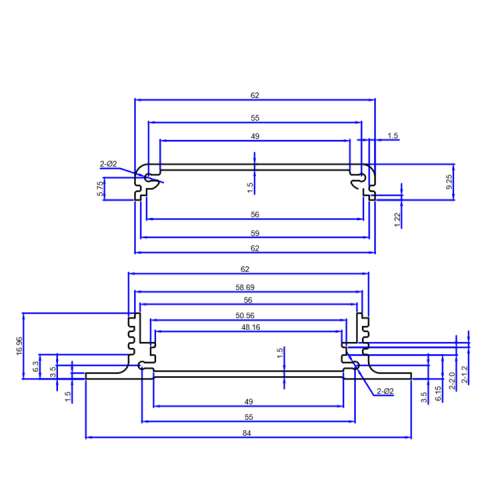

The BF001 is a compact extruded aluminum enclosure measuring 84 × 25 × L mm (3.31" × 0.98" × L"). It is built from extruded aluminum construction with a slide-in body and machined end panels, and it suits engineers who need a handheld housing that can be machined, finished and branded to match a specific product design. Length is cut to order, so the same profile can serve several product sizes without a new mould. Because the profile comes from PUMAY's library of more than 1,000 existing moulds, no tooling fee is charged and a machined sample can be ready in about seven days.

Specifications

Customisation Options

Every BF001 is made to order. The options below can be combined freely; send a drawing or a dimensioned sketch and we will confirm feasibility and price.

• Branding: laser engraving, silkscreen printing, anodized colour fill or adhesive label recess.
• Hardware: screws, studs, standoffs, blind rivet nuts, riveting bolts, rubber feet and mounting brackets.
• PCB mounting: internal slide-in slots for board edges, plus standoffs or bosses at your board outline.
• Finishing: sandblasting, brushing, anodizing, powder coating and two-tone finishing across body and panels.
• Length: cut to your finished dimension, so one profile can cover several product sizes without a new mould.
• CNC cut-outs: connector apertures, switch and button openings, LED windows, display cut-outs and cable glands machined in the body or end panels to your drawing.
• End panels: flat, stepped or flanged aluminium end plates, with or without a sealing groove.

Typical Applications

• Industrial control and automation
• Power supply and driver units
• Sensor and measurement interfaces
• Networking and communication gear
• Laboratory and test equipment
• Custom PCB electronic assemblies

Why Buyers Choose PUMAY

• No tooling fee. More than 1,000 aluminium extrusion moulds are already in stock, so you pay for material and machining, not for a new die.
• One factory, start to finish. Extrusion, CNC machining, sandblasting, anodizing, silk screen printing and laser engraving all happen in PUMAY's 4,500 m² Foshan plant.
• Quotation in 24 hours. Send a drawing or a sample and our engineers reply with a real quote within one working day — not an automated message.
• Low minimums. Samples from 1 piece and production from 50 pieces, which suits pilot runs and hardware start-ups.
• Tolerance. ±0.1 mm on machined features, verified against the CE, SGS and 6063 material certificates supplied with every batch.

Frequently Asked Questions

Can the BF001 be cut to a custom length?

Yes. Length is the easiest dimension to change on an extrusion - tell us the finished length and we cut and machine the section accordingly.

Is there a tooling or mould charge?

No. BF001 is produced from a mould that already exists in PUMAY's inventory, so no tooling fee is charged. You only pay for material, machining, finishing and freight.

Can the BF001 be made water-resistant?

Yes. With a gasket groove, sealed end panels, sealed cable glands and an appropriate IP-rated connector selection, the enclosure can be built to IP65, IP67 or IP68. Tell us the target IP level and the intended environment and we will confirm the sealing method.

What is the minimum order quantity?

One piece for a sample so you can check fit and finish, and 50 pieces for mass production. Larger quantities are quoted with volume pricing.

Request a Quote for BF001

Send your drawing, 3D model or a sample with your target quantity and required finish, and PUMAY's engineers will reply with a detailed quotation — including lead time and shipping options to North America and Europe — within 24 hours.
